Introduction to VEX Robotics Programming with PROS

About

Welcome to the VEX Robotics curriculum designed to teach students how to program the VEX V5 system using PROS (Purdue Robotics Operating System). This project provides a modular, beginner-friendly path to learning robotics programming in C++ with hands-on examples. This curriculum works best when worked on with a VEX V5 Clawbot.

Potential Alternative Pathways

VSC or PROS not installed: Start at Module 0 (Environment set up)
Prior programming experience: Start at Module 2 (Project set up)
Prior controller-only/VEXcode blocks or text experience - Start at Module 4 (Autonomous routines)
Prior PROS experience: Start at Module 5 (Competition setup)

Curriculum Overview

Module:
0	Setting up Visual Studio Code & PROS
1	Intro to Programming & C++
2	Setting up a Project & Motors in PROS
3	Tank Drive & Arm/Claw Control for the Clawbot
4	Creating Autonomous Routines
5	Using Sensors & Competition Preparation

Content

Module 0: Setting up Visual Studio Code & PROS

1. Install Visual Studio Code

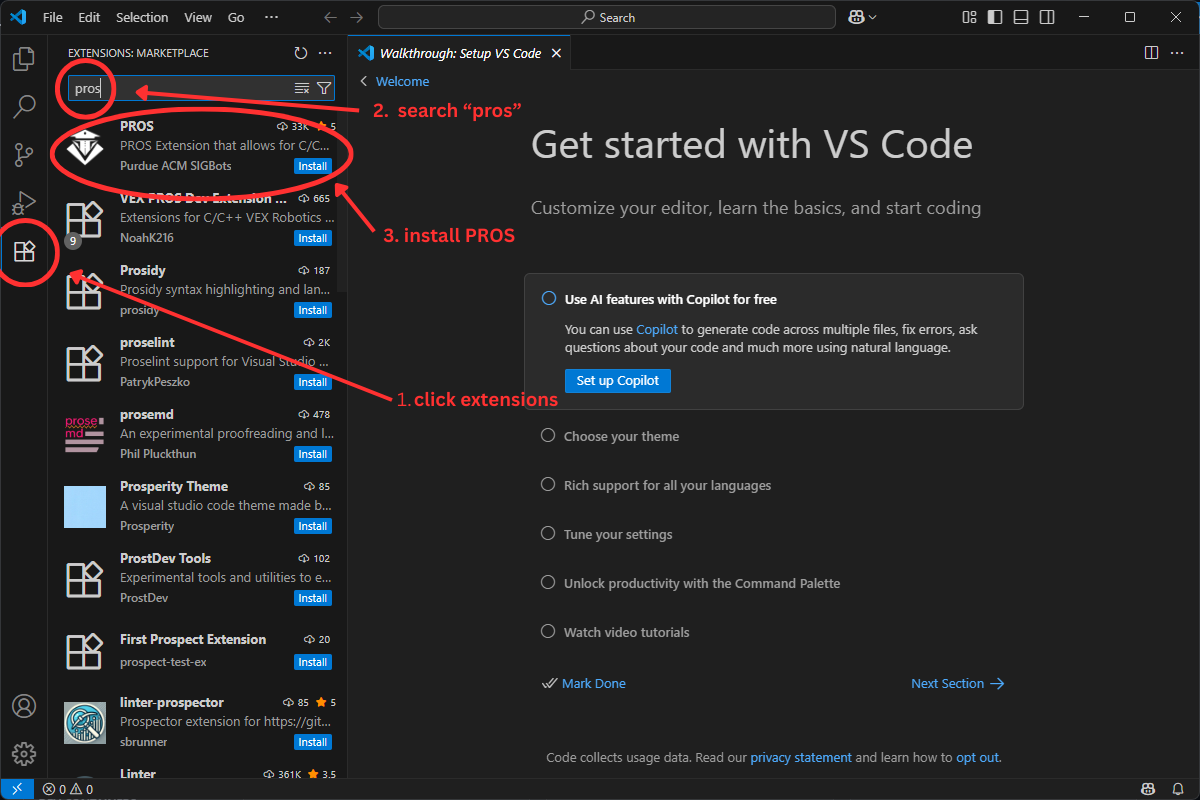

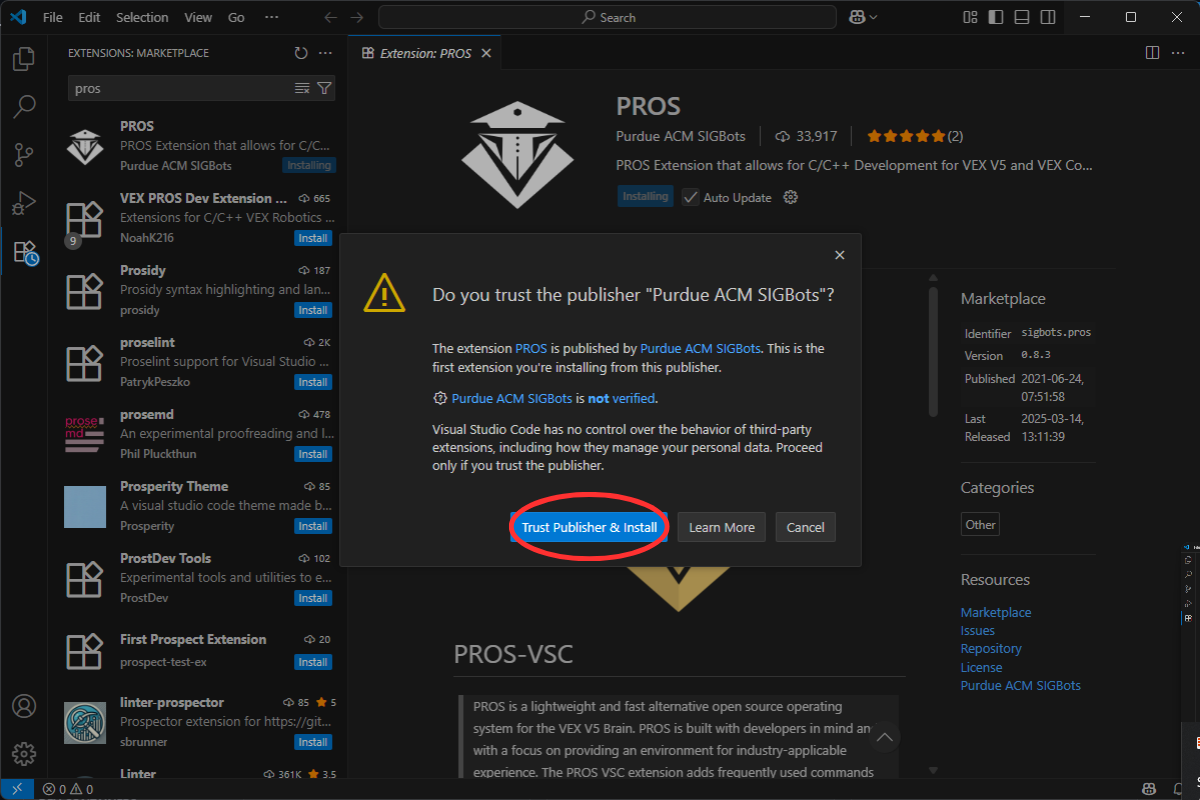

2. Download PROS extension in Visual Studio Code

3. Download C/C++ and C/C++ Extension Pack extension in Visual Studio Code

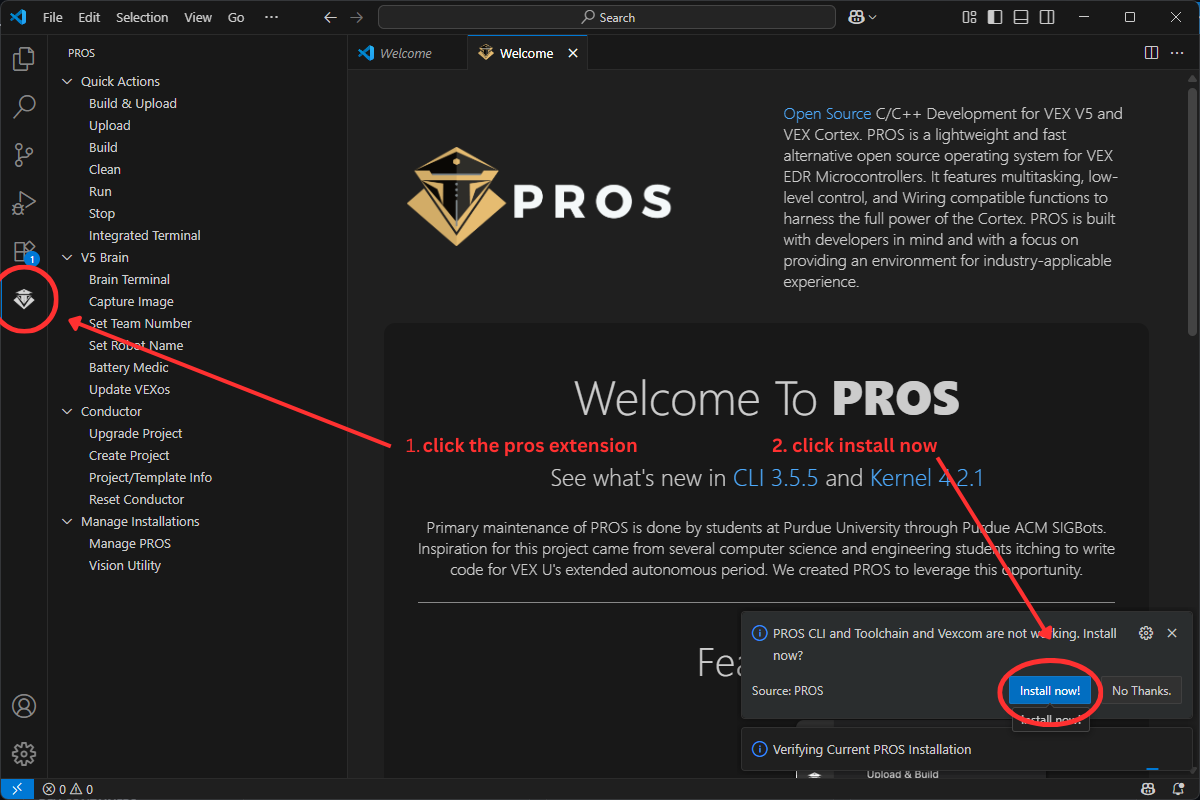

4. Click on PROS extension and install all pop ups

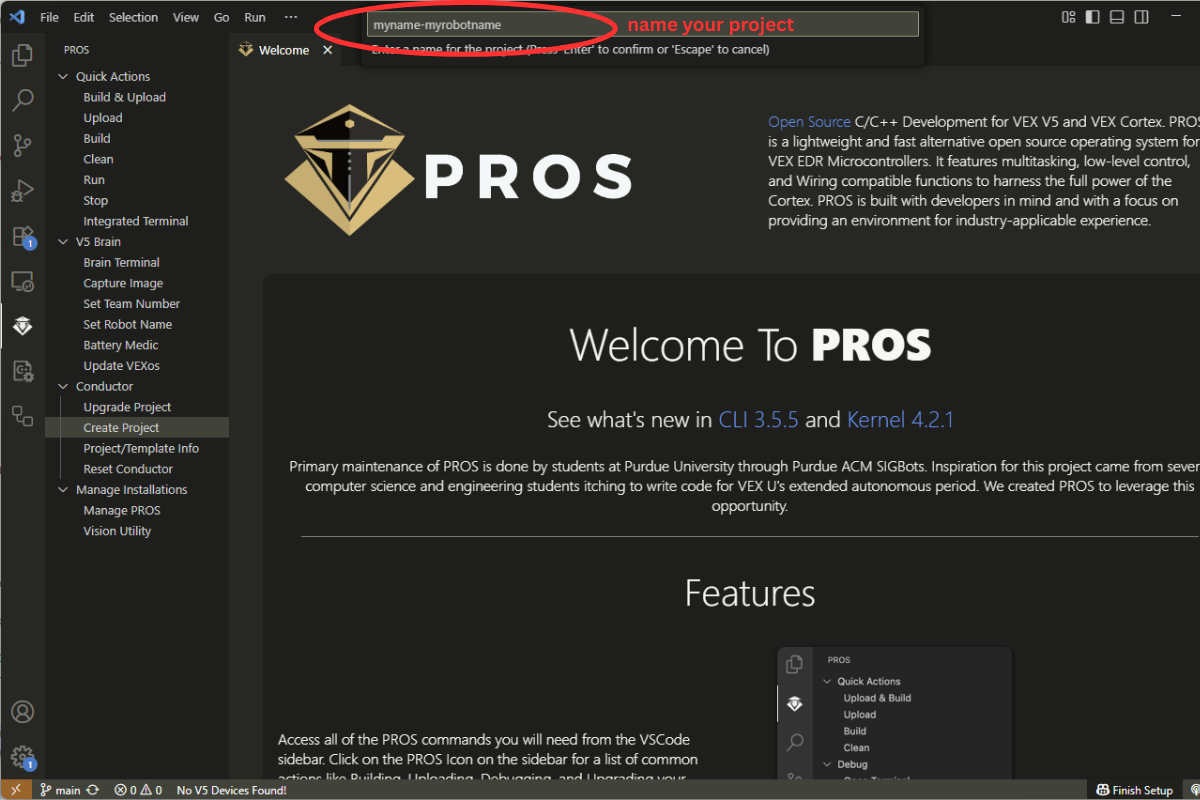

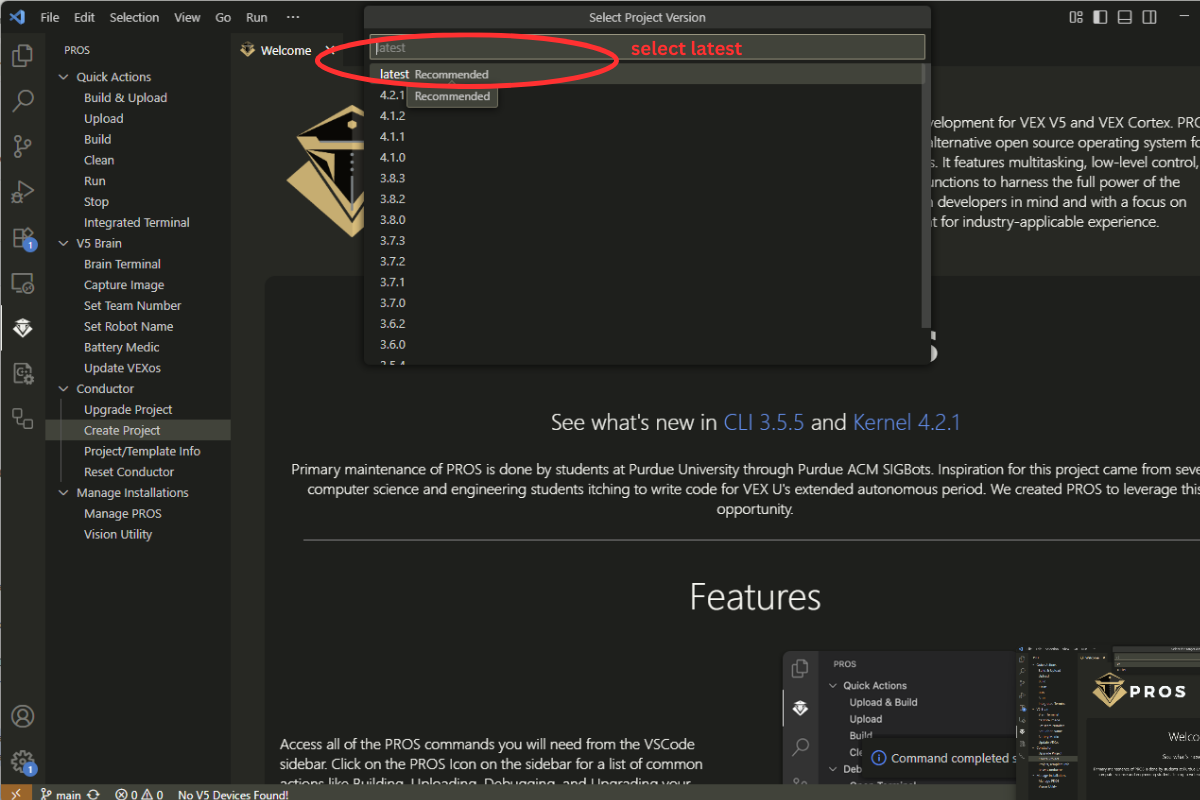

5. Create new PROS project and choose all recommended settings

It might take a while to create a new project… Having trouble? Check out the official PROS installation guide

Congratulations! You’ve created your very first PROS project. :)

Module 1: Intro to Programming & C++

Data Types & Variables

When writing code for robots, it is important to have a way to store and use information for things like motor speeds, sensor readings, and button presses.

In C++, the programming language commonly used in VEX Robotics, this is done using variables. A variable is a labeled container where you can store a piece of data to use later.

Data Type	Example	What It Stores	Example Usage
`int`	`int motorSpeed = 100;`	Whole numbers (positive, negative, or zero)	Motor speed, joystick values
`bool`	`bool clawOpen = true;`	`true` or `false`	Is the claw open?
`double`	`double wheelCircumference = 25.4;`	Decimal numbers with high precision	Distance traveled in cm
`float`	`float armAngle = 90.5;`	Decimal numbers (less precision than `double`)	Arm angle in degrees

To define and initialize variables with a value, you need:

a data type - what kind of data it stores
a name - so you can call it later
a value - to be used later

Example:

int motorSpeed = 100;   // Create a variable and give it the value 100
motorSpeed = 50;        // Change the value to 50

In PROS, motors need a port value to be created. Because these values stay constant with each program, a C++ concept called a macro is created to store the number.

#define ARM_PORT 8

Conditional Statements

Robots need to make decisions; for example, deciding whether to open or close the claw or to move forward or stop.

In C++, conditional statements help run different code depending on whether certain conditions are true or false.

`if` Statement

Runs a block of code only if a condition is true.

Format:

if (condition) {
  // Code runs if condition is true
}

Example:

if (buttonPressed) {
  Claw.move_velocity(100); // Open claw
}

If buttonPressed is true, then the claw will open.

`else if` Statement

Adds another condition to check if the first one was false.

Format:

if (condition1) {
  // Code runs if condition1 is true
}
else if (condition2) {
  // Runs if condition2 is true AND condition1 was false
}

Example:

if (buttonOpen) {
  Claw.move_velocity(100); // Open claw
}
else if (buttonClose) {
  Claw.move_velocity(-100); // Close claw
}

If buttonOpen is true, then the claw will open. But if that was not true and buttonClose is true, then the claw will close.

`else` Statement

Runs a block of code if none of the previous conditions were true.

Format:

if (condition1) {
  // ...
}
else if (condition2) {
  // ...
}
else {
  // Runs if all above are false
}

Example:

if (buttonOpen) {
  Claw.move_velocity(100); // Open claw
}
else if (buttonClose) {
  Claw.move_velocity(-100); // Close claw
}
else {
   Claw.move_velocity(0); // Stop claw
}

If buttonOpen is true, then the claw will open. But if that was not true and buttonClose is true, then the claw will close. If none of those conditions are true, the claw will not move.

It can be helpful to use a flowchart to plan out the logic of your program before you write the code.

You can use if, multiple else ifs, and else together or just if and else. Typically, when you use an if, you will need to use an else statement as well.

Operators

It is also important to perform calculations or make decisions based on certain conditions. In C++, this is done with operators, symbols that tell the program what action to perform.

Arithmetic Operator	Example	Meaning	Example Usage
`+`	`speed + 10`	Addition	Increase motor speed
`-`	`speed - 5`	Subtraction	Decrease arm position
`*`	`wheelDiameter * 3`	Multiplication	Calculate total distance
`/`	`distance / time`	Division	Calculate average speed
`%`	`count % 2`	Modulus (remainder)	Check if a number is even or odd

Example:

int leftSpeed = 50;
int rightSpeed = leftSpeed + 10; // rightSpeed is now 60

Logical operators are used to combine or modify true/false (bool) values. These are useful for checking multiple conditions at once.

Logical Operator	Example	Meaning	Example Usage
`&&`	`(buttonA && buttonB)`	AND — both must be true	Only move claw if both buttons are pressed
`\|\|`	`(buttonA \|\| buttonB)`	OR — one must be true	Move claw if either button is pressed
`!`	`!clawOpen`	NOT — reverse the value	Run code if claw is not open

Example:

bool armUp = true;
bool clawOpen = false;

if (armUp && !clawOpen) {
    // Arm is up AND claw is closed
}

Relational operators compare two values and return true or false.

Relational Operator	Example	Meaning	Example Usage
`<`	`speed < 100`	Less than	Check if speed is below a limit
`>`	`speed > 0`	Greater than	Check if robot is moving forward
`==`	`count == 5`	Equal to	Check if a counter has reached a target
`!=`	`mode != 1`	Not equal to	Check if the mode is not 1

== is to check if two values are equal. = is for assigning a value to something.

Example:

int speed = 80;

if (speed < 100) {
    // Increase speed
}

Loops

A while loop repeats as long as a certain condition is true.

Format:

while (condtion) {
  // code that repeats while a condition is true
}

Example:

int count = 0 {

while (count < 5) {
  count = count + 1;
}

This loop will repeat until the count variable reaches 5.

Sometimes in robotics, a while(true) loop will be used, creating an infinite loop which never ends until the program is stopped or break is used. This is common in robot operator control mode, because the robot needs to keep responding to the controller until the match ends.

Example in PROS:

while(true) {
  // Check controller input
  // Move motors
  pros::delay(20); // Prevent CPU overload
}

Here, the robot keeps running the code inside the loop forever during driver control.

A for loop is used when y ou know exactly how many times you want to repeat something.

It is often used for counting or going through a sequence of numbers.

Format:

for (start; condition; update) {
  // Code that repeats
}

Example:

for (int i = 0; i < 5; i++) {
  // Run 5 times, i goes from 0 until it isn't less than 5 (4)
}

Key Differences

Feature	`while` Loop	`for` Loop
Best for	Repeating until a condition changes	Repeating a set number of times
Loop setup style	Condition only	Start, condition, and update in one line
Common in PROS	`while(true)` for continuous robot code	Rare in main control loop, but useful for timed actions

Functions

Functions let you put actions that you would use repeatedly (like setting the claw speed, or driving forwards or backwards) into named blocks of code.

What is a function?

A function has:

Return Type (what it gives back; void if nothing)
Name
Parameters (inputs)
Body (the code it runs)

Format:

return_type functionName(parameterType1 param1, parameterType2 param2){
//do something here
return value;
}

Example without return:

void setClawSpeed(int rpm) {
  Claw.move_velocity(rpm);
}

Example with return:

double average(double a, double b) {
  return (a + b) / 2.0;
}

Why would we use functions in robotics?

Reuse: Call the same behavior between driver control and autonomous.
Clarity: Give names to actions (e.g. openClaw(), driveStraight()).
Testing: You can test small pieces independently.

Parameters & Return Types

Parameters are inputs your function needs
Return type is the kind of value the function gives back

// Input joystick value, output scaled motor speed
int scaleSpeed(int stick) {
  return stick * 2; // example scaling
}

If your function doesn’t need to return anything, use void:

void stopDrive() {
  LeftDrive.move_velocity(0);
  RightDrive.move_velocity(0);
}

Pass‑by‑Value vs Pass‑by‑Reference (advanced)

By default, parameters are copied (pass‑by‑value). For large data or when you want to modify the caller’s variable, use a reference (&).

// Pass-by-value (copy):
void setTarget(int target) { /* uses a copy */ }

// Pass-by-reference (can modify original):
void zeroIfSmall(int &value) {
  if (value < 10) value = 0; // changes caller's variable
}

Use const & when you won’t modify the input but want to avoid copies:

void printName(const std::string &name) {
  // name is read-only here
}

Function Declarations (Prototypes)

If you call a function before it’s defined, you need a prototype at the top of the file (or in a header).

// Prototype (declaration)
void openClaw();

// Later or in another file (definition)
void openClaw() {
  Claw.move_velocity(100);
}

Function Overloading (Same Name, Different Inputs)

You can reuse a function name as long as the parameter list differs.

void driveForTime(int ms, int rpm);
void driveForTime(int ms); // uses a default speed

void driveForTime(int ms, int rpm) {
  LeftDrive.move_velocity(rpm);
  RightDrive.move_velocity(rpm);
  pros::delay(ms);
  stopDrive();
}

void driveForTime(int ms) { // default to 100 rpm
  driveForTime(ms, 100);
}

Using Functions in PROS

Functions are especially useful in robotics for turning common actions—like reading controller input, spinning motors, or using sensors—into reusable building blocks. This keeps your code clean, consistent, and easier to update.

Below are examples of using functions in PROS to handle common robot tasks.

int getLeftJoystick() {
  return Controller.get_analog(pros::E_CONTROLLER_ANALOG_LEFT_Y);
}

bool isButtonPressed(pros::controller_digital_e_t button) {
  return Controller.get_digital(button);
}

Example Usage:

int left = getLeftJoystick();
if (isButtonPressed(pros::E_CONTROLLER_DIGITAL_R1)) {
  // Do something when R1 is pressed
}

Actuating a Piston (Pneumatics):

void setPiston(bool extended) {
  piston.set_value(extended); // true = extend, false = retract
}

Example Usage:

if (isButtonPressed(pros::E_CONTROLLER_DIGITAL_L1)) setPiston(true);
if (isButtonPressed(pros::E_CONTROLLER_DIGITAL_L2)) setPiston(false);

Spinning an Intake Motor (Forward & Backward)

void runIntakeForward(int speed) {
  Intake.move_velocity(speed);
}

void runIntakeBackward(int speed) {
  Intake.move_velocity(-speed);
}

Example usage:

if (isButtonPressed(pros::E_CONTROLLER_DIGITAL_R1)) runIntakeForward(200);  // Forward
else if (isButtonPressed(pros::E_CONTROLLER_DIGITAL_R2)) runIntakeBackward(200); // Reverse
else runIntake(0); // Stop

Preset Scoring Heights & Toggling Through Them

int heightIndex = 0;
const int heights[] = {0, 500, 1000}; // Encoder units for arm positions

void nextHeight() {
  heightIndex = (heightIndex + 1) % 3;
  Arm.move_absolute(heights[heightIndex], 100); // Move to next preset
}

Example usage:

if (isButtonPressed(pros::E_CONTROLLER_DIGITAL_UP)) nextHeight();

Using a Gyro or Rotation Sensor for Movement

void turnToAngle(double targetAngle) {
  while (fabs(Gyro.get_heading() - targetAngle) > 2) {
    int direction = (Gyro.get_heading() < targetAngle) ? 1 : -1;
    LeftDrive.move_velocity(50 * direction);
    RightDrive.move_velocity(-50 * direction);
    pros::delay(20);
  }
  LeftDrive.move_velocity(0);
  RightDrive.move_velocity(0);
}

Example Usage:

turnToAngle(90); // Turn to 90 degrees using gyro

You can combine these functions in opcontrol() or autonomous() to make complex behaviors simple to write and easy to adjust later.

Module 2: Setting up a Project & Motors in PROS

Create a new project in PROS

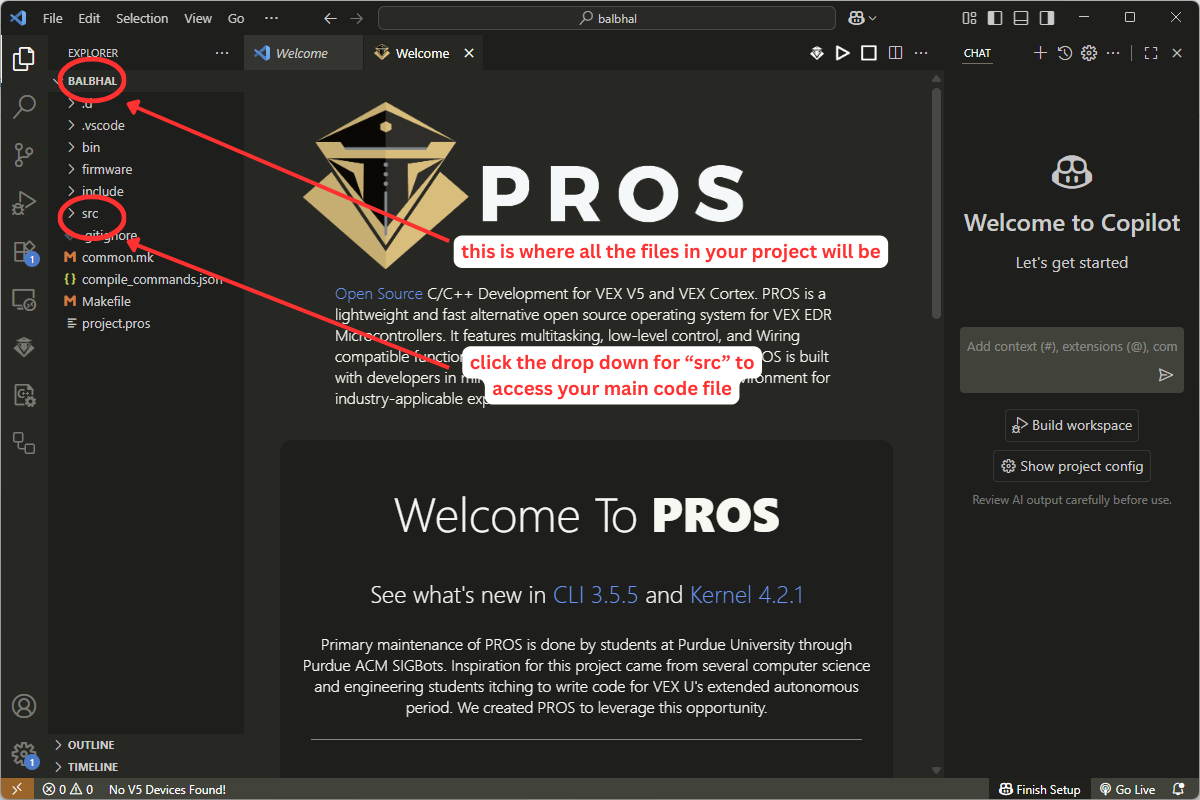

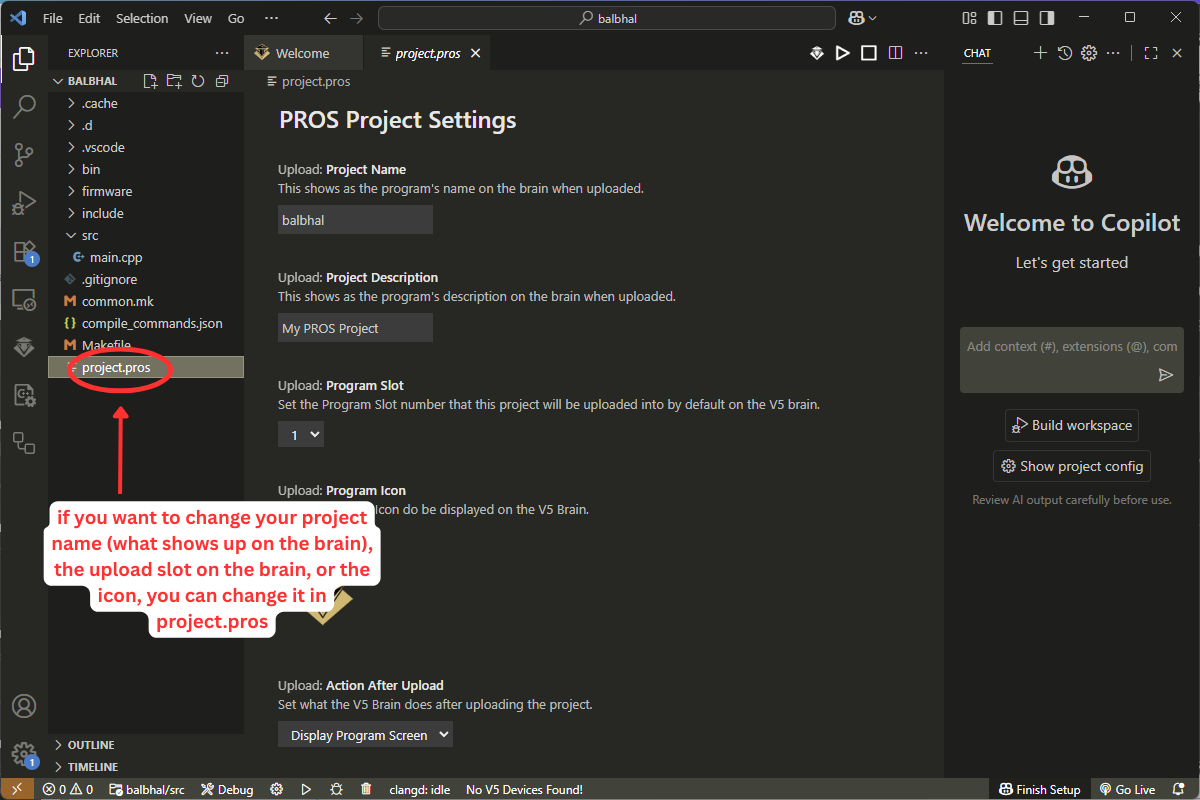

Getting familiar with the project

Setting up your main.cpp

In the beginning of your main.cpp file, there is #include "main.h". Beneath it, please add:

#include "pros/motors.hpp"
#include <cmath>

What are .h and .hpp files? Check this out

Then, create macros for your motor ports. The format will be #define WHAT_MOTOR X, with X being the number port on the brain that your motor is connected to.

For the beginner clawbot, you will need a left drivetrain motor, right drivetrain motor, arm motor, and claw motor.

Example:

// change numbers as needed to match with ports
#define LEFT_MOTOR 1
#define RIGHT_MOTOR 10
#define ARM 8
#define CLAW 3

Please use all caps for these macros :)

Beneath the macro declarations, we will create the actual motor and motor group declarations.

For drivetrains, we will create a motor group for each side of the drive train (right/left). In most cases, all other motors will just be singular motors. The format for a motor group will be pros::MotorGroup NameOfGroup({FIRST_MOTOR}, {SECOND_MOTOR}, {THIRD_MOTOR}, ...);. The format for a singular motor will be pros::Motor Name(PORTNAME);.

Example:

pros::MotorGroup LeftDriveSmart({LEFT_MOTOR});
pros::MotorGroup RightDriveSmart({RIGHT_MOTOR});
pros::Motor Arm(ARM);
pros::Motor Claw(CLAW);

After these steps, the beginning of your main.cpp file should look something like this

#include "main.h"
#include "pros/motors.hpp"
#include <cmath>

#define LEFT_MOTOR 1
#define RIGHT_MOTOR 10
#define ARM 8
#define CLAW 3

pros::MotorGroup LeftDriveSmart({LEFT_MOTOR});
pros::MotorGroup RightDriveSmart({RIGHT_MOTOR});
pros::Motor Arm(ARM);
pros::Motor Claw(CLAW);

If you are programming a different robot than the clawbot, your motor and motor group declarations will look different than this. This is just a basic example to help you get started.

Recommended! Set the braking modes to hold for your arm and claw motors. Go to void initialize() and add these two lines.
Arm.set_brake_mode(pros::E_MOTOR_BRAKE_HOLD);
Claw.set_brake_mode(pros::E_MOTOR_BRAKE_HOLD);
It should look like this: ```cpp void initialize() { pros::lcd::initialize(); pros::lcd::set_text(1, “Hello PROS User!”);
pros::lcd::register_btn1_cb(on_center_button);

Arm.set_brake_mode(pros::E_MOTOR_BRAKE_HOLD);
Claw.set_brake_mode(pros::E_MOTOR_BRAKE_HOLD); }

Module 3: Tank Drive & Arm/Claw Control for the Clawbot

Module 4: Creating Autonomous Routines

Module 5: Using Sensors & Competition Preparation

License

MIT License

Team

Created by Uijin Cho, Dhruv Patel

Suggestions? Create an issue

Created for Robolabs / Dublin Robotics Club

This site is open source. Improve this page.

vex-pros

Introduction to VEX Robotics Programming with PROS

About

Potential Alternative Pathways

Curriculum Overview

Content

Module 0: Setting up Visual Studio Code & PROS

1. Install Visual Studio Code

2. Download PROS extension in Visual Studio Code

3. Download C/C++ and C/C++ Extension Pack extension in Visual Studio Code

4. Click on PROS extension and install all pop ups

5. Create new PROS project and choose all recommended settings

Congratulations! You’ve created your very first PROS project. :)

Module 1: Intro to Programming & C++

Data Types & Variables

Conditional Statements

if Statement

else if Statement

else Statement

Operators

Loops

Key Differences

Functions

What is a function?

Format:

Example without return:

Example with return:

Why would we use functions in robotics?

Parameters & Return Types

Pass‑by‑Value vs Pass‑by‑Reference (advanced)

Function Declarations (Prototypes)

Function Overloading (Same Name, Different Inputs)

Using Functions in PROS

Module 2: Setting up a Project & Motors in PROS

Create a new project in PROS

Getting familiar with the project

Setting up your main.cpp

Module 3: Tank Drive & Arm/Claw Control for the Clawbot

Module 4: Creating Autonomous Routines

Module 5: Using Sensors & Competition Preparation

License

Team

`if` Statement

`else if` Statement

`else` Statement
